Description

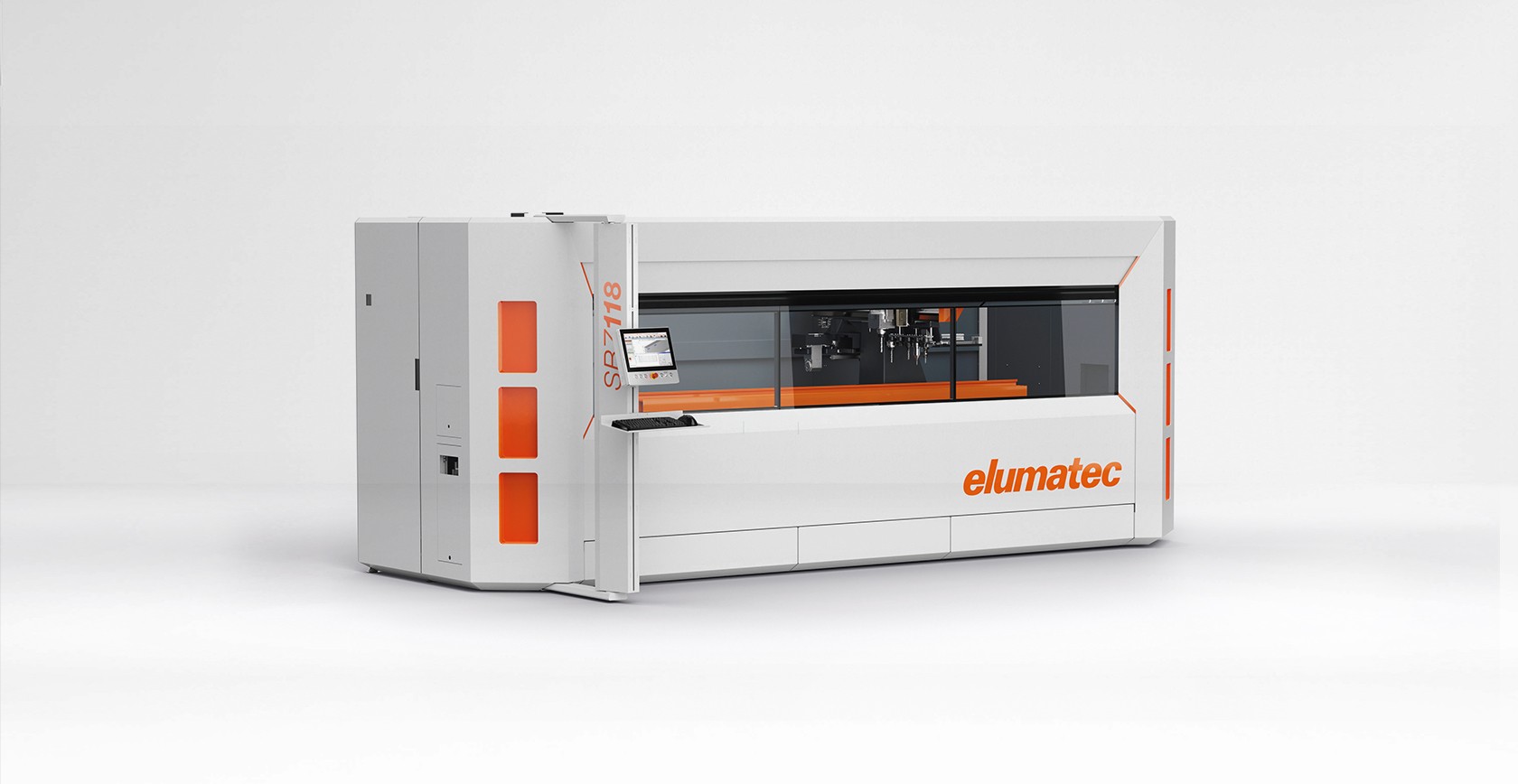

The SBZ 118, a 3-axis profile machining centre with optional 5-sided machining that’s easy to use and has a minimal footprint, expands the elumatec range of entry-level products for automated CNC machining of aluminium, PVC and thin-walled steel profiles. With its machining length of three metres, this versatile and powerful model is the most compact CNC machine in the current elumatec range.
The SBZ 118 offers full functionality for milling, drilling and notching in a small space. It was developed for machining up to five sides with an optional angle head and end milling machine, depending on the individual configuration. The proven inclined bed technology and the on-board 5-fold tool changer make it easy to use.
The SBZ 118 is made particularly attractive by individually configurable optional equipment, including up to two on-board angle head changers, expansion to up to six clamps, an additional length stop with overlength machining and a barcode scanner. A side service door facilitates set-up and maintenance, and the new front visor enables ergonomic and above all safe operation – even for tall people. Plus, the SBZ 118 is eluCloud ready to meet the requirements of Industry 4.0.
Designed for economical and efficient machining of aluminium, PVC and thin-walled steel profiles
All operations, such as routing, drilling, notching and tapping, are performed while the profile bar is stationary to protect the profile surfaces
Better machining results thanks to intelligent control technology
Fast positioning of the machining unit with up to 60 m/min thanks to dynamic servo drives
Tapping without compensation chuck
Automatic clamp recognition and clamp positioning
Automatic on-board tool changer with five tool tray positions (without tools)
State-of-the-art 3-axis controller
Ergonomic and stable operation thanks to the advanced inclined bed
Automatic clamp recognition and positioning prevents collisions
Power torque routing motor with enclosed speed control for short spindle start-up and braking times.
Low power consumption thanks to intelligent control technology
DC link coupling in the axis drives for greater energy efficiency
Uninterruptible power supply (UPS)
Windows operating system
15.6″ panel PC, i3 processor, USB ports and network connection
Simple, stress-free program entry with eluCam on the operating panel, even during operation
eluCloud ready
Remote online maintenance
Machine configuration
Air-cooled 5 kW, S1 routing spindle
Protective cabin with side service door
Four horizontal, pneumatic material clamping units
A material stop on the left
HSK-F63 tool holder
Minimum-volume lubrication system
High-performance cutting fluid
Options
1 or 2 optional on-board tool changers for rotating angle heads for 5-sided machining
HSK-F63 rotating angle head for two tools
Tools and tool holders with process data
Barcode scanner
Length measurement on both sides
Double clamping and other accessories on request
18.5″ panel PC, i5 processor
21.6″ panel PC, i7 processor
Green Line cooling unit for the control cabinet with reduced energy consumption
Four clamps as standard. Can be equipped with up to six clamps
Material reference stop (right) for positioning workpieces with overlength machining
CE version as standard, UL version optional
